Density® 600C
The Density 600 is small but powerful. It was developed to protect small-to-medium areas such as conveniency stores and high value goods areas up to 600 m3.

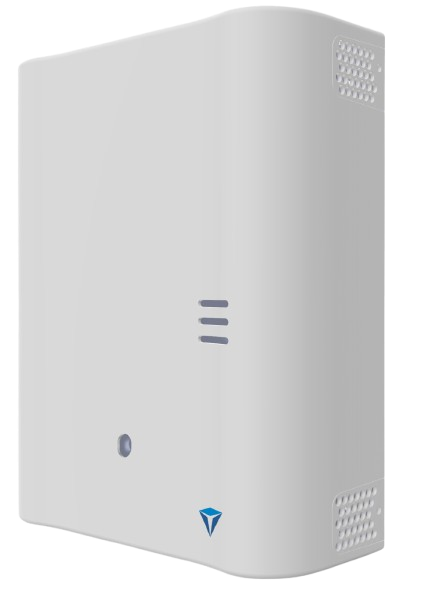

Density® 600C fog generator
is the key to securing your valuables and premises are safe, by instantly repelling intruders.
FEATURES AND COMPATIBILITY
Protection of premises from 5 to 600 m² with absolute zero vision for intruders.
Protecting premises up to 600 m3
Multidirectional nozzle adaptative to fit all installations types.
API is available for software and hardware customisation.
Fast and dense, this fog generator produces 225 m3 in 10 seconds
High security IP Card: 2×128 bits data encryption.
Density® 600C
The Density 600 is small but powerful. It was developed to protect small-to-medium areas such as conveniency stores and high value goods areas
Technical specifications Density® 600C
| Table Header | Table Header | Table Header | Table Header |
|---|---|---|---|
|
Weight |
7.5kg / 8.5kg |
||
|
Dimensions |
300 mm x 130 mm x 390 mm |
||
|
Dimensions Boxed |
360 mmx 190 mmx 450 mm36 x19 x H45 |
||
|
Colors |
White |
||
|
Power supply |
240VAC 50Hz or 115VAC 60Hz |
||
|
Power consumption at Heat-up
|
170W |
||
|
Average power consumption after Heat-up
|
37W |
||
|
Heat-up time from cold
|
90 minutes |
||
|
Heat-up time after full shoot
|
7minutes |
||
|
Working time after loss of mains power (Battery operation)
|
1+ hours |
||
| Table Header | Table Header | Table Header | Table Header |
|---|---|---|---|
|
Single shoot max time |
28 seconds |
||
|
Single shoot max fog output |
600 m3
|
||
|
Adjustable Fog timer
|
Fully programable in steps of 1 second
|
||
|
Adjustable nozzle
|
Yes |
||
|
Fluid container system
|
1275m3 – 750ml litre fluid container
|
||
|
Number of full Fog releases on a full fluid container
|
6 |
||
|
Low fluid alarm
|
Yes |
||
|
No fluid alarm
|
Yes |
||
|
Tamper switch for Lid opening
|
Yes |
||
|
Plastic casing
|
Yes |
||
| Table Header | Table Header | Table Header | Table Header |
|---|---|---|---|
|
Input, Galvanically isolated optocoupler
|
4 |
||
|
Separate PIR input with 12V supply
|
1 |
||
|
Inputs selectable to be active or passive
|
Yes |
||
|
Relay output |
5 |
||
|
Outputs selectable to be Normal Open or Normal Closed |
Yes |
||
|
Status and audio indicators on PCB |
Yes |
||
|
Connectorfor external LED status indicator |
Yes |
||
|
Battery backup, single 12V 2.3 Ah battery |
Yes |
||
|
Dipswitches for setting options |
Yes |
||
|
Service switch for safe technician |
Yes |
||
| Table Header | Table Header | Table Header | Table Header |
|---|---|---|---|
|
IP Card |
Yes (Optional) |
||
|
Cloud Access, with full operation |
Yes Free of Charge
|
||
|
API protocol option
|
Yes |
||
|
RS232 Serial port |
Yes |
||
|
USB Port for programming and diagnostics |
Yes |
