Density® UNIK
Density® UNIK is the technological revolution of the fogging industry.
Cold fog is the result of an international patent. Cold at all times, security fog is produced from the intensity of special high-amperage batteries, the Density® UNIK POWER PACK.

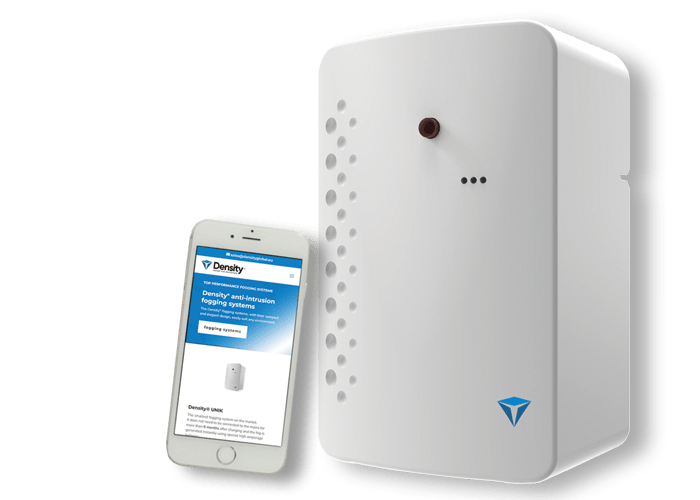

The Density® UNIK fog generator
is the solution to protect your goods and premises from relative risks by instantly repelling intruders
KEY POINTS
The smallest fog generator on the market.
Quick and easy installation.
Battery operation possible.
Up to 6 months in the event of total loss of power supply.
Very low power consumption. Close to zero.
Do not heat-up! Fog is produced INSTANTLY. 2 international patents.
The Density UNIK recharge can shoot up to 8 times reducing drastically the costs.
TECHNICAL SPECIFICATIONS
| Table Header | Table Header | Table Header | Table Header |
|---|---|---|---|
|
Weight |
5 kg |
||
|
Dimensions |
300 mm x 200 mm x 150mm |
||
|
Colors |
White or Black |
||
|
Power supply |
10-16V – Battery only operation possible |
||
|
Heat-up time |
System instantly ready |
||
|
Autonomy on battery (POWER PACK) |
Up to 6 months* |
||
*Autonomy is guaranteed for at least one 60 secs full shoot (unit without connected accessories)
| Table Header | Table Header | Table Header | Table Header |
|---|---|---|---|
|
Single shoot max time |
60 seconds |
||
|
Single shoot max fog output |
100 m3 (EN standard) – commercial 300 m3 |
||
|
Shooting time settings |
3 options 15, 30 or 60 seconds |
||
|
Maximum coverage with a UNIK Density cartridge |
600 m3 commercial |
||
|
Number of full fog shots on a full fluid bag |
From 2 to 8 |
||
|
External LED |
3 |
||
|
Low fluid level indicator/error |
Yes – red LED |
||
|
Ready to shoot indicator |
Yes – blue LED |
||
|
Indicator of unit on |
Yes – green LED |
||
|
ABS lid |
Yes |
||
|
Inputs |
3 |
||
|
PIR/ PANIC input |
Yes |
||
|
Outputs |
3 (optional board relay) |
||
|
Status and audio indicators on PCB |
Yes |
||
|
Shooting test and diagnostics (2 sec.) |
Yes |
||
| Table Header | Table Header | Table Header | Table Header |
|---|---|---|---|
|
Wired IP card and WiFi (ActiveCloud) |
Yes** (optional) |
||
|
WiFi antenna for ActiveCloud |
Yes* (optional) |
||
|
Access to ActiveCloud with remote monitoring/activation |
Yes (free) |
||
*Autonomy is guaranteed for at least one 60 secs full shoot (unit without connected accessories)
**Requires 12V power (via power supply or stepdown cable)
| Table Header | Table Header | Table Header | Table Header |
|---|---|---|---|
|
Active Cloud LAN / Wi-Fi board |
|||
|
Active Server LAN / Wi-Fi board |
|||
|
Wi-Fi antenna for Lan board |
|||
|
Mounting kit Active Cloud/ Active Server (24V-12V adapter kit for lan not included) |
|||
|
Orientable wall bracket |
|||
|
Kit 2 Batteries 12V 9Ah |
|||
|
External fast charger |
|||
|
Internal power supply 220/110V |
|||
|
24-12 V adapter cable for Lan |
| Table Header | Table Header | Table Header | Table Header |
|---|---|---|---|
|
Fluid bag 120 ml Density® UNIK |
DENSITY® UNIK TYPICAL APPLICATIONS
