Density HP line

Density® HP line

The Density^® HP fog systems line impresses with its fog production capacity and its low energy consumption. To protect premises up to 700 / 1500 m².

2 models of fog generators

The Density® HP fog generator

is the solution to protect your goods and premises from relative risks by instantly repelling intruders.

FEATURES AND COMPATIBILITY

ActiveCloud board
for secure connection
(2x128bits encryption)
wired or WiFi.

API available for
software and
hardware
customisation.

Multidirectional nozzle.

2 FOGGING SYSTEM MODELS

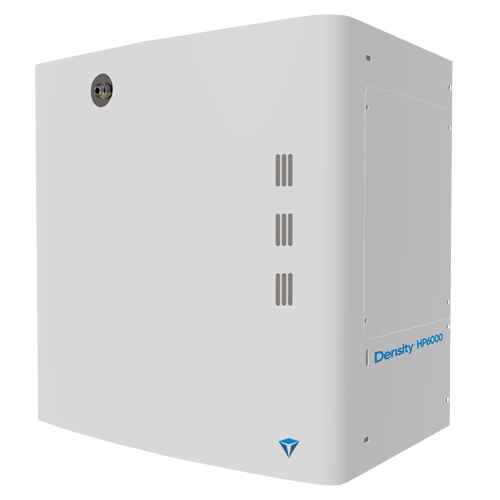

Density® HP 6000

The first fog generator of the range Density^® HP – High – impresses with its fog production capacity and its low energy consumption. Designed for storage cells in large warehouses, factories, logistics platforms or large spaces.

To protect
premises from
up to 700 m².

Fast and dense,
this fog generator
produce 2000 m³
in 80 seconds.

Energy consumption relative to the protection.

Technical specifications Density® HP 6000

Table Header	Table Header	Table Header	Table Header
Weight	50 kg
Dimensions	435 mm x 440 mm x 305mm
Colors	White
Power supply	230VAC 50Hz
Power consumption at heat-up	600W
Average power consumption after heat-up	80W
Heat-up time from cold	210 minutes
Heat-up time after full shoot	110 minutes
Working time after loss of mains power	3 hours

Table Header	Table Header	Table Header	Table Header
Single shoot max time	80 seconds
Single shoot max fog output	2000 m3 (EN standard) – commercial 6000 m3
Programmable shooting time	Yes – Programmable in seconds
Adjustable nozzle	Yes
Total emission capacity with fluid bag charge	20000 m3 – 4 L
Number of full fog releases on a full fluid bag	3
Low fluid alarm	Yes
No fluid alarm	Yes
Tamper switch for lid opening	Yes
Steel casing	Yes

Table Header	Table Header	Table Header	Table Header
Input, galvanically isolated optocoupler	4
Seperate PIR input with 12V supply	1
Inputs selectable to be active or passive	Yes
Relay output	4
Outputs selectable to be Normal Open or Normal Closed	Yes
Status and audio indicators on PCB	Yes
Connector for external LED status indicator	Yes
Battery backup 12V 7,2Ah	Yes (optional)
Dipswitches for setting options	Yes
Service switch for safe technician operation	Yes

Table Header	Table Header	Table Header	Table Header
IP card ActiveCloud	Yes (optional)
ActiveCloud access	Yes (free)
API protocol option	Yes
RS232 Serial port (for dedicated devices)	Yes
WiFi	Yes (optional antenna)
USB Port for diagnostic	Yes

Table Header	Table Header	Table Header	Table Header
Active Cloud LAN / Wi-Fi board
Active Server LAN / Wi-Fi board
Wi-Fi antenna for Lan board
Mounting kit Active Cloud/ Active Server (external plastic box for HP line included)
Nozzle extention 7 cm
Density Box Gateway
Density Box Bridge

Table Header	Table Header	Table Header	Table Header
Fluid bag 4000 ml Density®

Density® HP 14000

With its impressive production capacity, low energy consumption and unparalleled fog density, Density^® HP 14000 is the most powerful fog generator in the world. Part of the Density «High Production – HP» range, it has been developed to protect large warehouses, logistics platforms and factories.

To protect
premises from
up to 1500 m².

Fast and dense,
this fog generator
produce 4500 m³
in 200 seconds.
