Density® line
The line of robust, powerful and easy to install fog systems. Ideal for low-medium risk premises and for premises with high risks. To protect premises from 5 to 300 m2. 4 models of fog generators

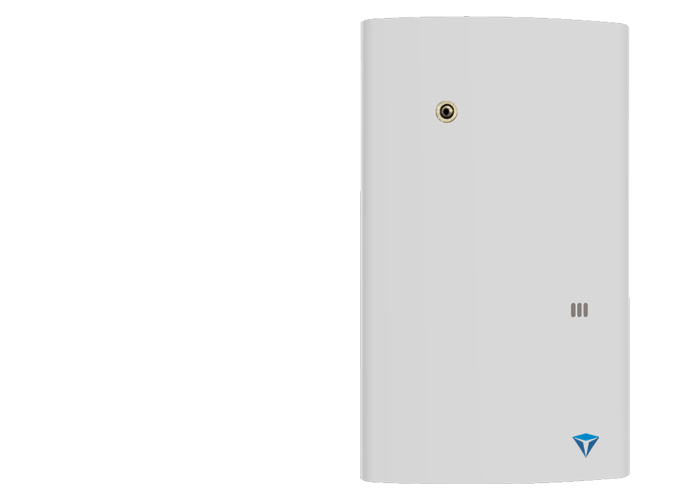

The Density® fog generator
is the solution to protect your goods and premises from relative risks by instantly repelling intruders.
FEATURES AND COMPATIBILITY
ActiveCloud board
for secure connection
(2x128bits encryption)
wired or WiFi.
API available for
software and
hardware
customisation.
Multidirectional nozzle adaptative to fit all installations types.
Density® 390
Robust and easy to install, it is ideal for small shops or stores and generally for low-medium risk premises.
To protect
premises from
5 to 45 m2.
Fast and dense,
this fog generator
produce 130 m3
in 20 seconds.
3M ceiling
Density® 390 typical applications
Technical specifications Density® 390
| Table Header | Table Header | Table Header | Table Header |
|---|---|---|---|
|
Weight |
10,5 kg |
||
|
Dimensions |
477 mm x 286 mm x 143mm |
||
|
Colors |
White or black |
||
|
Power supply |
230VAC 50Hz or 115VAC 60Hz |
||
|
Power consumption at heat-up |
600W |
||
|
Average power consumption after heat-up |
56W |
||
|
Heat-up time from cold |
44 minutes |
||
|
Heat-up time after full shoot |
5 minutes |
||
|
Working time after loss of mains power |
2 hours |
||
| Table Header | Table Header | Table Header | Table Header |
|---|---|---|---|
|
Single shoot max time |
20 seconds |
||
|
Single shoot max fog output |
130 m3 (EN standard) – commercial 390 m3 |
||
|
Programmable shooting time |
Yes – Programmable in seconds |
||
|
Adjustable nozzle |
Yes |
||
|
Total emission capacity with fluid bag charge |
2500 m3 – 0.5 L |
||
|
Number of full fog releases on a full fluid bag |
6 |
||
|
Low fluid alarm |
Yes |
||
|
No fluid alarm |
Yes |
||
|
Tamper switch for lid opening |
Yes |
||
|
Steel casing |
Yes |
||
| Table Header | Table Header | Table Header | Table Header |
|---|---|---|---|
|
Input, galvanically isolated optocoupler |
4 |
||
|
Seperate PIR input with 12V supply |
1 |
||
|
Inputs selectable to be active or passive |
Yes |
||
|
Relay output |
5 |
||
|
Outputs selectable to be Normal Open or Normal Closed |
Yes |
||
|
Status and audio indicators on PCB |
Yes |
||
|
Connector for external LED status indicator |
Yes |
||
|
Battery backup 12V 2Ah |
Yes (optional) |
||
|
Dipswitches for setting options |
Yes |
||
|
Service switch for safe technician operation |
Yes |
||
| Table Header | Table Header | Table Header | Table Header |
|---|---|---|---|
|
IP card ActiveCloud |
Yes (optional) |
||
|
ActiveCloud access |
Yes (free) |
||
|
API protocol option |
Yes |
||
|
RS232 Serial port (for dedicated devices) |
Yes |
||
|
WiFi |
Yes (optional antenna) |
||
|
USB Port for diagnostic |
Yes |
||
| Table Header | Table Header | Table Header | Table Header |
|---|---|---|---|
|
Active Cloud LAN / Wi-Fi board |
|||
|
Active Server LAN / Wi-Fi board |
|||
|
Wi-Fi antenna for Lan board |
|||
|
Mounting kit Active Cloud/ Active Server |
|||
|
V/down nozzle |
|||
|
Three holes nozzle |
|||
|
Nozzle extention 5 cm |
|||
|
Nozzle extention 10 cm |
|||
|
Density Box Gateway |
|||
|
Density Box Bridge |
| Table Header | Table Header | Table Header | Table Header |
|---|---|---|---|
|
Fluid bag 500 ml Density® |
2 FOGGING SYSTEM MODELS
Density® 900
Developed to protect in seconds safe rooms, ATM walls, tabacco shops, high value goods reserves up to 100 m2.
To protect
premises from
5 to 100 m2.
premises from
5 to 100 m2.
Fast and dense,
this fog generator
produce 300 m3
in 29 seconds.
this fog generator
produce 300 m3
in 29 seconds.
3M ceiling
Density® 900 typical applications
Technical specifications Density® 900
| Table Header | Table Header | Table Header | Table Header |
|---|---|---|---|
|
Weight |
11,7 kg |
||
|
Dimensions |
477 mm x 286 mm x 143mm |
||
|
Colors |
White or black |
||
|
Power supply |
230VAC 50Hz or 115VAC 60Hz |
||
|
Power consumption at heat-up |
600W |
||
|
Average power consumption after heat-up |
42W |
||
|
Heat-up time from cold |
46 minutes |
||
|
Heat-up time after full shoot |
10 minutes |
||
|
Working time after loss of mains power |
2 hours |
||
| Table Header | Table Header | Table Header | Table Header |
|---|---|---|---|
|
Single shoot max time |
29 seconds |
||
|
Single shoot max fog output |
300 m3 (EN standard) – commercial 900 m3 |
||
|
Programmable shooting time |
Yes – Programmable in seconds |
||
|
Adjustable nozzle |
Yes |
||
|
Total emission capacity with fluid bag charge |
8000 m3 – 1.5 L |
||
|
Number of full fog releases on a full fluid bag |
9 |
||
|
Low fluid alarm |
Yes |
||
|
No fluid alarm |
Yes |
||
|
Tamper switch for lid opening |
Yes |
||
|
Steel casing |
Yes |
||
| Table Header | Table Header | Table Header | Table Header |
|---|---|---|---|
|
Input, galvanically isolated optocoupler |
4 |
||
|
Seperate PIR input with 12V supply |
1 |
||
|
Inputs selectable to be active or passive |
Yes |
||
|
Relay output |
5 |
||
|
Outputs selectable to be Normal Open or Normal Closed |
Yes |
||
|
Status and audio indicators on PCB |
Yes |
||
|
Connector for external LED status indicator |
Yes |
||
|
Battery backup 12V 2Ah |
Yes (optional) |
||
|
Dipswitches for setting options |
Yes |
||
|
Service switch for safe technician operation |
Yes |
||
| Table Header | Table Header | Table Header | Table Header |
|---|---|---|---|
|
IP card ActiveCloud |
Yes (optional) |
||
|
ActiveCloud access |
Yes (free) |
||
|
API protocol option |
Yes |
||
|
RS232 Serial port (for dedicated devices) |
Yes |
||
|
WiFi |
Yes (optional antenna) |
||
|
USB Port for diagnostic |
Yes |
||
| Table Header | Table Header | Table Header | Table Header |
|---|---|---|---|
|
Active Cloud LAN / Wi-Fi board |
|||
|
Active Server LAN / Wi-Fi board |
|||
|
Wi-Fi antenna for Lan board |
|||
|
Mounting kit Active Cloud/ Active Server |
|||
|
V/down nozzle |
|||
|
Three holes nozzle |
|||
|
Nozzle extention 5 cm |
|||
|
Nozzle extention 10 cm |
|||
|
Density Box Gateway |
|||
|
Density Box Bridge |
| Table Header | Table Header | Table Header | Table Header |
|---|---|---|---|
|
Fluid bag 1500 ml Density® |
Density® 1500
Developed to protect with «Fast and Dense fog» large city stores and small warehouses.
This can be optical, motorcycle or bicycle stores up to 200 m2.
To protect
premises from
80 to 200 m2.
premises from
80 to 200 m2.
Fast and dense,
this fog generator
produce 500 m3
in 44 seconds.
this fog generator
produce 500 m3
in 44 seconds.
3M ceiling
Density® 1500 typical applications
Technical specifications Density® 1500
| Table Header | Table Header | Table Header | Table Header |
|---|---|---|---|
|
Weight |
13,5 kg |
||
|
Dimensions |
477 mm x 286 mm x 143mm |
||
|
Colors |
White or black |
||
|
Power supply |
230VAC 50Hz or 115VAC 60Hz |
||
|
Power consumption at heat-up |
750W |
||
|
Average power consumption after heat-up |
70W |
||
|
Heat-up time from cold |
42 minutes |
||
|
Heat-up time after full shoot |
14 minutes |
||
|
Working time after loss of mains power |
2 hours |
||
| Table Header | Table Header | Table Header | Table Header |
|---|---|---|---|
|
Single shoot max time |
48 seconds |
||
|
Single shoot max fog output |
500 m3 (EN standard) – commercial 1500 m3 |
||
|
Shot characteristics |
Programmable in seconds |
||
|
Fluid container system |
1 L |
||
|
Number of full fog releases on a full fluid tank |
3 |
||
|
2 cabled inputs: |
Arming and shooting |
||
|
3 cabled outputs: |
Empty bag, Shoot confirm and system failure |
||
|
Top internal riser for optional boards |
Yes (optional) |
||
|
Side internal riser for optional boards |
Yes (optional) |
||
|
RS232 Serial ports for dedicated option boards |
Yes, 2 |
||
| Table Header | Table Header | Table Header | Table Header |
|---|---|---|---|
|
Mains power |
230 V AC or 120 V AC |
||
|
Average consumption |
48 W |
||
|
Heater max power in start |
280 W |
||
|
Backup battery 12V/2Ah |
Not included |
||
| Table Header | Table Header | Table Header | Table Header |
|---|---|---|---|
|
Active Cloud LAN / Wi-Fi board |
|||
|
Active Server LAN / Wi-Fi board |
|||
|
Wi-Fi antenna for Lan board |
|||
|
Mounting kit Active Cloud/Active Server /
Serial relay board for Density Lite |
|||
|
Serial 4 relay board for Density Lite (mounting kit not included) |
|||
|
Orientable wall bracket |
|||
|
Desk stand |
|||
|
Nozzle extention 5 cm |
|||
|
Nozzle extention 10 cm |
| Table Header | Table Header | Table Header | Table Header |
|---|---|---|---|
|
Fluid bag 1000 ml Density® Lite |

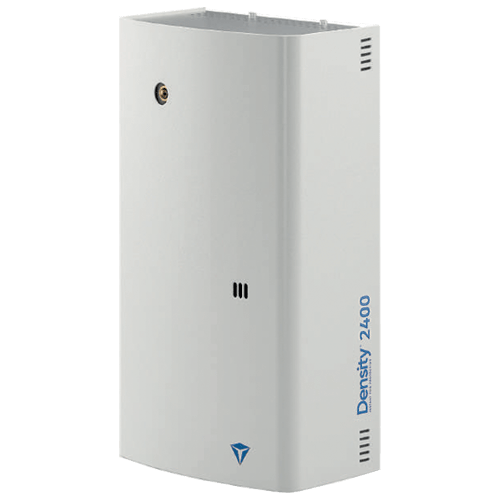

Density® 2400
Powerful and fast is made for premises with high risks, large business premises and shops.
To protect
premises from
150 to 300 m2.
premises from
150 to 300 m2.
Fast and dense, this fog generator produce 800 m3 in 80 seconds.
3M ceiling
Density® 2400 typical applications
Technical specifications Density® 2400
| Table Header | Table Header | Table Header | Table Header |
|---|---|---|---|
|
Weight |
14,7 kg |
||
|
Dimensions |
477 mm x 286 mm x 143mm |
||
|
Colors |
White or black |
||
|
Power supply |
230VAC 50Hz or 115VAC 60Hz |
||
|
Power consumption at heat-up |
1000W |
||
|
Average power consumption after heat-up |
78W |
||
|
Heat-up time from cold |
49 minutes |
||
|
Heat-up time after full shoot |
18 minutes |
||
|
Working time after loss of mains power |
2 hours |
||
| Table Header | Table Header | Table Header | Table Header |
|---|---|---|---|
|
Single shoot max time |
80 seconds |
||
|
Single shoot max fog output |
800 m3 (EN standard) – commercial 2400 m3 |
||
|
Programmable shooting time |
Yes – Programmable in seconds |
||
|
Adjustable nozzle |
Yes |
||
|
Total emission capacity with fluid bag charge |
8000 m3 – 1.5 L |
||
|
Number of full fog releases on a full fluid bag |
3 |
||
|
Low fluid alarm |
Yes |
||
|
No fluid alarm |
Yes |
||
|
Tamper switch for lid opening |
Yes |
||
|
Steel casing |
Yes |
||
| Table Header | Table Header | Table Header | Table Header |
|---|---|---|---|
|
Input, galvanically isolated optocoupler |
4 |
||
|
Seperate PIR input with 12V supply |
1 |
||
|
Inputs selectable to be active or passive |
Yes |
||
|
Relay output |
5 |
||
|
Outputs selectable to be Normal Open or Normal Closed |
Yes |
||
|
Status and audio indicators on PCB |
Yes |
||
|
Connector for external LED status indicator |
Yes |
||
|
Battery backup 12V 2Ah |
Yes (optional) |
||
|
Dipswitches for setting options |
Yes |
||
|
Service switch for safe technician operation |
Yes |
||
| Table Header | Table Header | Table Header | Table Header |
|---|---|---|---|
|
IP card ActiveCloud |
Yes (optional) |
||
|
ActiveCloud access |
Yes (free) |
||
|
API protocol option |
Yes |
||
|
RS232 Serial port (for dedicated devices) |
Yes |
||
|
WiFi |
Yes (optional antenna) |
||
|
USB Port for diagnostic |
Yes |
||
| Table Header | Table Header | Table Header | Table Header |
|---|---|---|---|
|
Active Cloud LAN / Wi-Fi board |
|||
|
Active Server LAN / Wi-Fi board |
|||
|
Wi-Fi antenna for Lan board |
|||
|
Mounting kit Active Cloud/ Active Server |
|||
|
V/down nozzle |
|||
|
Three holes nozzle |
|||
|
Nozzle extention 5 cm |
|||
|
Nozzle extention 10 cm |
|||
|
Density Box Gateway |
|||
|
Density Box Bridge |
| Table Header | Table Header | Table Header | Table Header |
|---|---|---|---|
|
Fluid bag 1500 ml Density® |
